Efficient network connection between 5G RG651E-NA Sub-6GHz and millimeter wave 5G module

Key features

5G/ 4G/ 3G multi-mode module with LGA package, optimized for IoT and eMBB applications

Worldwide 5G, LTE-A and 3G coverage

5G NSA and SA modes

Multi-constellation GNSS receiver (optional) available for applications requiring fast and accurate fixes in any environment

Feature refinements: DFOTA and VoNR*/ VoLTE* (optional)

Overview

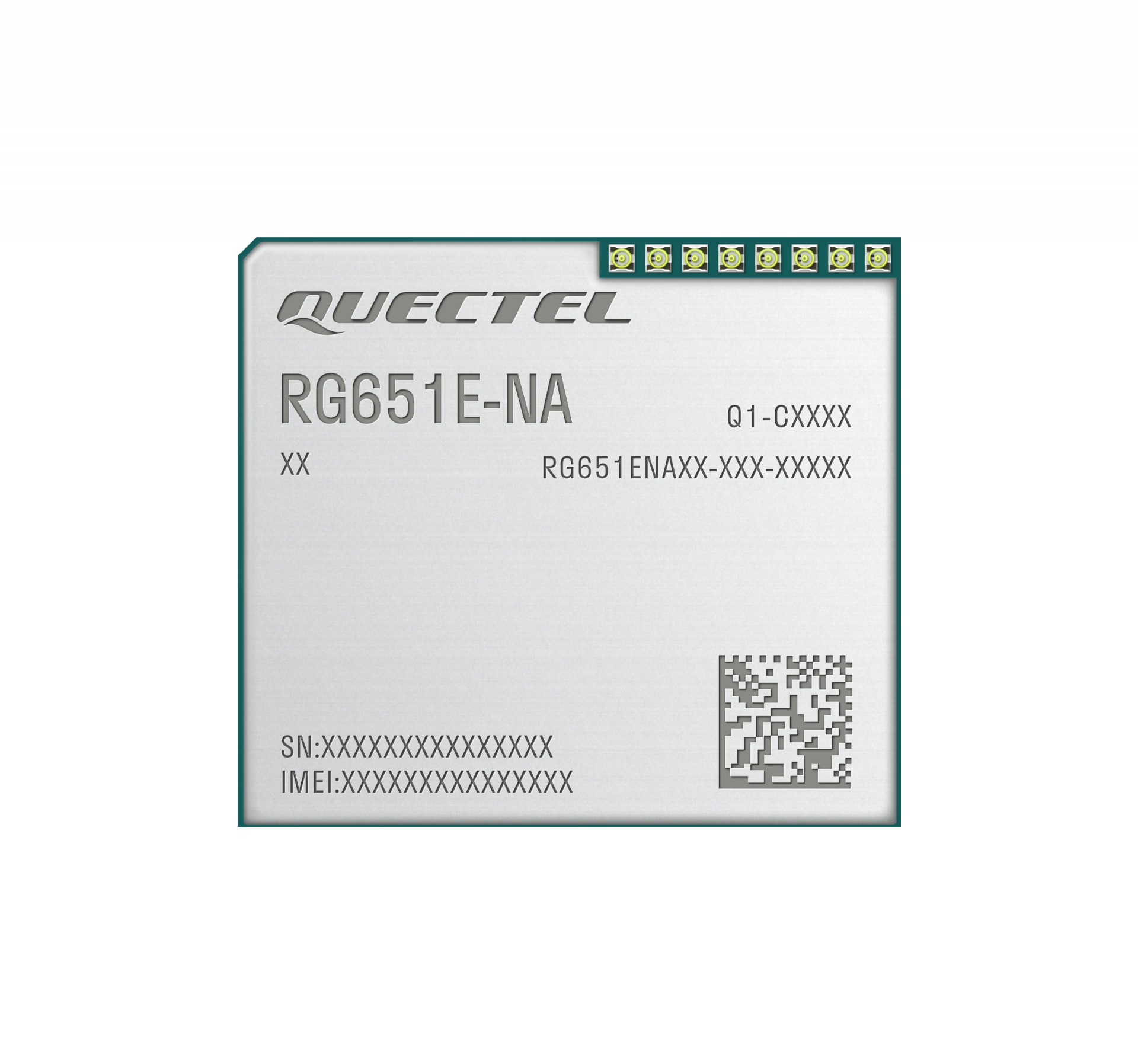

Quectel RG651E-NA is a 5G LGA module optimized specially for IoT and eMBB applications. Based on 3GPP Rel-17 technology, it supports both 5G NSA and SA modes with Option 3x/ 3a/ 3 and Option 2 network architectures, and is backward compatible with the 4G/ 3G networks. The module can meet customers’ different application demands for high speed, large capacity, low latency, high reliability, etc. RG651E-NA is an industrial-grade module for industrial and commercial applications only.

RG651E-NA supports Qualcomm® IZat™ location technology Gen9C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0/ 3.0/ 3.1, PCIe 3.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows, Linux and Android) extend the applicability of the module to a wide range of IoT and eMBB applications such as business routers, home gateway, STB, industrial laptops, consumer laptops, industrial PDA, rugged tablet PCs and video transmission.
