ABB | Digital Input Module 200 meters (219 yards) 100 pF/m for a.c., 600 meters (656 yards) for d.c.

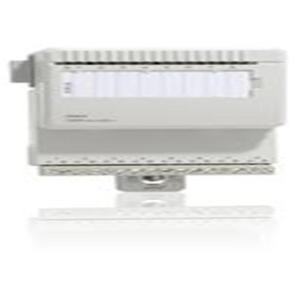

The DI802 is an 8 channel 120 V a.c./d.c.digital input module for the S800 I/O. This module has 8 digital inputs. The a.c. input voltage range is 77 - 130 volt and the input current is 10 mA at 120 V a.c. The d.c. input range is 75 - 145 V and the input current is 2.8 mA at 110 V. The inputs are individually isolated. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier.
Detailed data
|
Input voltage range, "0" |
0..30 V a.c., 0..20 V d.c. |
|
Input voltage range, "1" |
77..130 V a.c., 75..145 V d.c. |
|
Input impedance |
12 kΩ (a.c.) |
|
Isolation |
Individually isolated channels |
|
Filter times (digital, selectable) |
2, 4, 8, 16 ms |
|
Input frequencey range |
47..63 Hz |
|
Analog filter On/Off delay |
5 / 18 ms |
|
Maximum field cable length |
200 meters (219 yards) 100 pF/m for a.c., 600 meters (656 yards) for d.c. |
|
Rated insulation voltage |
250 V |
|
Dielectric test voltage |
2000 V a.c. |
|
Power dissipation |
Typ. 2.8 W |
|
Current consumption +5 V Modulebus |
50 mA |
|
Current consumption +24 V Modulebus |
0 |
|
Current consumption +24 V external |
0 |
|
Supported wire size |
Solid: 0.05-2.5 mm2, 30-12 AWG |
General info
|
Type |
Digital Input |
|
Signal specification |
120 V a.c., 110 V d.c. |
|
Article number |
3BSE022360R1 |
|
Number of channels |
8 |
|
Signal type |
Current sinking |
|
HART |
No |
|
SOE |
No |
|
Redundancy |
No |
|
High integrity |
No |
|
Intrinsic safety |
No |
|
Mechanics |
S800L |
Environment and certification
|
CE mark |
Yes |
|
Electrical safety |
IEC 61131-2, UL 508 |
|
Hazardous Location |
- |
|
Marine certification |
ABS, BV, DNV-GL, LR, RS, CCS |
|
Protection rating |
IP20 according to IEC60529 |
|
Corrosive atmosphere ISA-S71.04 |
G3 |
|
Climatic operating conditions |
0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
|
Pollution degree |
Degree 2, IEC 60664-1 |
|
Mechanical operating conditions |
IEC/EN 61131-2 |
|
EMC |
EN 61000-6-4 and EN 61000-6-2 |
|
Overvoltage categories |
IEC/EN 60664-1, EN 50178 |
|
Equipment class |
Class I according to IEC 61140; (earth protected) |
|
Max ambient temperature |
55 °C (131 °F), for vertical mounting 40 °C (104 °F) |
|
RoHS compliance |
EN 50581:2012 |
|
WEEE compliance |
DIRECTIVE/2012/19/EU |
