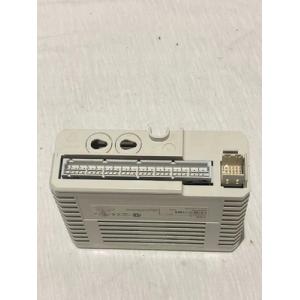

AI820 3BSE008544R1 ABB Analog Input 4 ch Module Article Number

AI820 3BSE008544R1 ABB Analog Input 4 ch Module Article Number

More information:

• Extended Product Type: AI820
• Product ID: 3BSE008544R1
• ABB Type Designation: AI820
• Catalog Description: AI820 Analog Input 4×1 Ch.
• Number of Output Channels: 0
• I/O Voltage, DC: 10 V
• I/O Voltage, AC: N/A V
• I/O Current, DC: 20 mA
• I/O Current, AC: N/A mA
• A/D Resolution: 14 bit
• Technical Information: +-20mA, 0(4)…20mA, +-10V, +-5V, 0(1)…5V, diff., 50V CMV,. Rin(curr) 250 Ohms, 14bit + sign. Individually galvanic isolated channels.
• Use Module Termination Unit TU810, TU812, TU814, TU830, TU833.

About AI820 3BSE008544R1:

AI820 Differential Analog Input Module 3BSE008544R1
The S800 I/O is distributed as modular I/O that communicates with numerous controllers over Advant Fieldbus 100 (AF100), PROFIBUS-DP, or directly.
The S800 I/O provides easy installation of the I/O modules and process cabling.
It is highly modularized and flexible so that I/O modules can be combined to suit many applications. The S800 I/O can be mounted in many configurations to fit most requirements.

AI820 Differential Analog Input Module 3BSE008544R1
The S800 I/O provides easy installation of the I/O modules and process cabling.
It is highly modularized and flexible so that the I/O modules can be combined to suit many applications, including most types of signals, HART and Intrinsic Safety Interface. The S800 I/O modules and a Fieldbus Communication Interface (FCI) are
combined to form an I/O Station. The S800 I/O can be used in both single and redundant applications.
