Mainrange of product
Modicon Quantum automation platform
product or component type

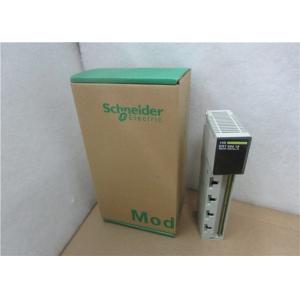

Multifunction input module
number of terminals
40
Complementaryfunction of module
Status logging counting 500 Hz
Status monitoring on discrete inputs
Time and date stamped event logging
time synchronisation protocol
DCF77
product compatibility
Concept
Unity Pro
group of channels
2 groups of 16 inputs process input
discrete input number
1 24 V clock signal input
32 24...125 V process input
switching voltage
125 V 1 mA process input
24 V 6 mA process input
48 V 2.5 mA process input
60 V 2.5 mA process input
maximum power consumption in W
7.5 W process input
insulation
By optocoupler clock signal input
insulation between group of channels
By optocoupler
anti bounce filtering
Configurable from 0 to 255 ms
input state
Inversion configurable
acquisition time
1 ms clock signal input
input current
5 mA clock signal input
electrical connection
Cable - shielded cable <1968.50 ft (600 m) process input
Cable - unshielded cable <1312.34 ft (400 m) process input
connections - terminals
Screw terminal block
local signalling
Communication on the bus (Active) 1 LED green)
Self test OK, module ready (R) 1 LED green)
Fault (F) 1 LED red)
Status of inputs (1 to 32) 32 LEDs
current consumption
0.07 mA 24 V DC 140XCP90000 module
3 mA 24...125 V DC external power supply per group of channel
300 mA 5 V DC bus
module format
Standard
net weight
0.99 lb(US) (0.45 kg)
Environmentresistance to electrostatic discharge
4 kV contact IEC 801-2
8 kV on air IEC 801-2
resistance to electromagnetic fields
9.14 V/m (10 V/m) 80...2000 MHz IEC 801-3
ambient air temperature for operation
32…140 °F (0…60 °C)
ambient air temperature for storage
-40…185 °F (-40…85 °C)
relative humidity
95 % without condensation
operating altitude
<= 16404.2 ft (5000 m)
protective treatment
TC
standards
HazLoc
UL 508
product certifications
CSA Class 1 Division 2
UL
LR
C-Tick
GOST
Merchant Navy
Ordering and shipping detailsCategory
18155-QUANTUM I/O & POWER SUPPLIES
Discount Schedule
PC21
GTIN
00785901706199
Package weight(Lbs)
1.07 lb(US) (0.485 kg)
Returnability
No
Country of origin
FR
