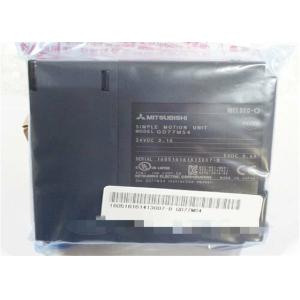

MELSEC-Q QD77MS Simple Motion Module Modicon Quantum PLC Mitsubishi
The QD77M4 is a high-performance Mitsubishi Electric motion controller module designed for precise multi-axis positioning control in industrial automation systems. It integrates seamlessly with Mitsubishi’s MELSEC iQ-R Series PLCs, offering advanced motion control capabilities, high-speed response, and flexible synchronization for complex machinery. Ideal for applications requiring accuracy, repeatability, and reliability, the QD77M4 supports up to 4 axes of servo control with real-time monitoring and diagnostics.
Brand: Mitsubishi Electric
Model: QD77M4
Type: Motion Controller Module (for MELSEC iQ-R Series)
Control Axes: 4 axes (simultaneous control)
Communication Interface: SSCNET III/H (high-speed fiber-optic network)
Compatible Servo Drives: Mitsubishi MR-J4 series
Programming Software: GX Works3 (motion control configuration)
Mounting: DIN rail or direct panel mounting
Housing: Flame-retardant plastic (UL94 V-0 compliant)
Terminals: Gold-plated contacts for corrosion resistance
Cooling Method: Natural convection (fanless design)
Protection Class: IP20 (indoor use, dust-sensitive)
CNC machines
Robotics & pick-and-place systems
Packaging machinery
Semiconductor manufacturing
Printing & textile equipment
|
Parameter |
Specification |
Unit/Notes |
|---|---|---|
| Control Method | SSCNET III/H | Fiber-optic communication |
| Number of Axes | 4 | Independent/synchronized control |
| Positioning Accuracy | ±1 pulse or better | Depends on servo resolution |
| Maximum Speed | 10,000,000 pulses/sec (per axis) | Varies by servo motor |
| I/O Points | 32 inputs / 32 outputs (configurable) | Digital signals |
| Power Supply | 24V DC (±10%) | 0.8A typical consumption |
| Operating Temperature | 0°C to +55°C | Storage: -25°C to +75°C |
| Vibration Resistance | 5.9 m/s² (10–55 Hz) | JIS B 3502 compliant |
| Certifications | CE, UL, cUL, RoHS | Industrial standards |
Note: For detailed wiring diagrams and programming instructions, refer to the Mitsubishi QD77M4 User
